MEDICINE AND SURGERY "F"
Course of LABORATORY MEDICINE
Disturbances of Aminoacid Metabolism
METABOLISM OF AMINOACIDS
THE REGISTRATION OF ATTENDANCE TO THIS ON-LINE LECTURE IS ACTIVE!
To register your attendance please type in your matricola number
Notice that your attendance will be registered only if you completed the reading, questions, and audios, and that you cannot interrupt and resume the session (but you can repeat it as many times as you like). Remember to press the [send] button before leaving this page! A confirmation message will appear at the end of this page.
A comment section has been added at the end of this lecture. Adding a comment or question does not require registration with your matricola number, feel free to comment whenever you like.

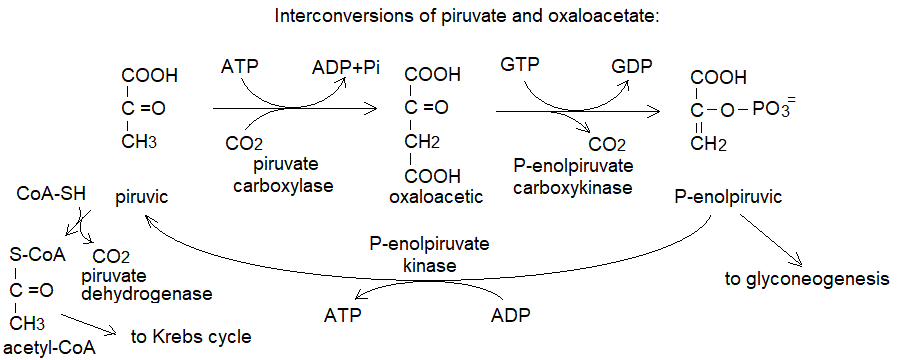

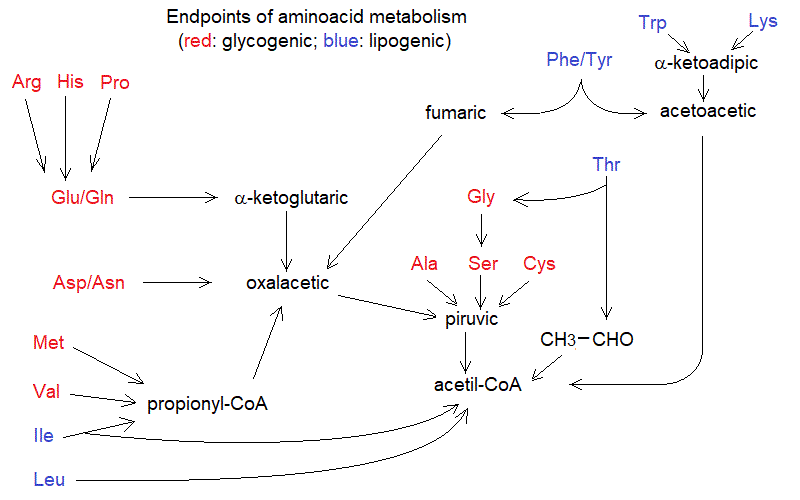

Dietary aminoacids (derived from the digestion of proteins) are deaminated and their amino group is disposed of in the urea cycle. Each aminoacid has its own catabolic pathway that allows the organism to derive energy from it. Aminoacids that can be converted to glycolytic intermediates and metabolyzed using the pathways of sugars are called glycogenic (in red in the figure below); aminoacids which can be converted to lipid-like products or acetil-CoA are called lipogenic (in blue in the figure below). Some aminoacids are split in two metabolytes, one lipogenic, the other glycogenic. The metabolism of Met, Ile and Val yields propionyl-CoA, which is common with the metabolism of uneven carbon fatty acids, but is a glycogenic metabolyte given that it is converted to succinyl-CoA and,
the Krebs cycle, to oxalacetic acid. When metabolytes of the Krebs cycle are produced, these are converted to oxalacetic acid, and this, in turn, is converted to piruvic acid for energy production. Several genetically determined defects of the metabolism of aminoacids are known some of them causing severe symptoms.
fuel of the Krebs cycle is acetyl-CoA
; thus reaching the intermediates of the Krebs cycle does not really ends the metabolic journey of aminoacids: it is necessary to convert oxaloacetate to acetil-CoA. This is accomplished by the enzyme P-enol piruvate carboxykinase which converts oxaloacetate to P-enolpiruvate, a glycolysis intermediate, from which piruvate can be obtained and,
piruvate dehydrogenase, acetyl-CoA.
DISTURBANCES OF THE METABOLISM OF AMINOACIDS
Some of the considerations given for the defects of the urea cycle also apply to defects of aminoacid metabolism. We add that: (i) in several cases, defects of aminoacid metabolism lead to overproduction of soluble metabolic intermediates that the kidney may eliminate; this reduces the severity of the disease. (ii) Careful dietary prescriptions may alleviate the symptoms by reducing the load of the aminoacid whose metabolism is impaired.
The symptoms of hereditary defects of aminoacid metabolism are
congenital or appear very early after birth
, but contrary to the defects of the urea cycle, they are very variable; thus these are
, possibly accompanied by seizures, is common to many of these defects;
with increased anion gap (HAGMA), and/or
(impaired reabsorption of solutes in the renal proximal tubuli, with glycosuria in the absence of hyperglycemia, phosphaturia, and loss of aminoacids and bicarbonate) occur in some of them. Some of these defects are mild or subclinical (e.g. alkaptonuria), others may cause extremely peculiar symptoms (e.g.
; urine smell like maple syrup in maple syrup urine disease). Diagnosis requires identification of the biochemical anomaly, and is confirmed by gene sequencing; aminoacid or their abnormal metabolytes are present in the blood and, at higher concentration, in the urine, which in many of these diseases is the biological sample of choice.
9 aminoacids are
(i.e. they need to be introduced with the diet, because humans do not have the enzymes required for their biosynthesis: phenylalanine (Phe), valine (Val), threonine (Thr), tryptophan (Trp), methionine (Met), leucine (Leu), isoleucine (Ile), lysine (Lys), and histidine (His). Genetic diseases in these cases are possible only for their catabolic pathways. Deficiency syndromes are described if their availability in the diet is insufficient.
6 aminoacids are
: arginine (Arg), cysteine (Cys), glycine (Gly), glutamine (Gln), proline (Pro), and tyrosine (Tyr). For these we have biosynthetic pathways but their biosynthesis may not be sufficient for our requirements or may depend on poorly available precursors (e.g. Tyr is produced from Phe; Cys from Met), or their decradation may be too effective (Arg). For these we have both biosynthetic and degradation pathways, and both can be affected by genetic diseases.
5 aminoacids are
: alanine (Ala), aspartic acid (Asp), asparagine (Asn), glutamic acid (Glu), serine (Ser). These are produced from widely available intermediates of glycolysis or the Krebs cycle. Given their proximity to major metabolic pathways these are uusually not affected by genetic diseases.
Audio: Hereditary defects of aminoacid metabolism
Hereditary defects of aminoacid metabolism
Organs affected and symptoms
Tyrosine and Phenylalanine
Hereditary deficiency of Phenylalanine hydroxylase (autosomal, recessive)
Mental retardation (can be prevented by a diet poor in phenylalanine and tyrosine)
Phenylpiruvic acid and other phenylketones in the urine; excess Phe in the blood
Deficiency of Tyrosine alpha-ketoglutarate transaminase
Mental retardation of variable severity
excess Tyr in the blood
Deficiency of Fumarylacetoacetate hydrolase
Fanconi's syndrome; liver failure
excess Tyr in the blood
deficiency of Homogentisic oxidase
benign (urine exposed to oxygen turns black)
homogentisic acid in the urine
deficiency of Tyrosinase
Absent melanine; hypopigmentation of the skin
Histidine ammonia lyase (liver and skin)
Mental retardation of variable severity
excess His in the blood
Histidine ammonia lyase (liver)
Neurological damage; convulsive cryses; possible coma and death
excess His in the blood
Branched chain aminoacidis (Valine, Leucine, and Isoleucine)
Maple syrup urine Disease
Branched chain ketoacid decarboxylase
Faticability; muscular cramps on exercise
metabolic ketoacidosis: branched chain ketoacids in the serum
deficiency of Valine aminotransferase
Mental retardation of variable severity
excess Val in the blood
deficiency of Methylmalonyl-CoA mutase
Mental retardation, acidosis and coma
metabolic acidosis due to methylmalonic acid in the blood (and in the urine)
Sulfur containing aminoacids: Cysteine and Methionine
deficiency of Cystathionine synthetase
Skeletal abnormalities, mental retardation, thrombosis
presence of homocysteine in the blood
deficiency of Cystathionase (Cystathionine Lyase)
Skeletal abnormalities, mental retardation, thrombosis
Cystathionine in the blood
Glycine and beta-alanine
deficiency of enzymes of the glycine degradation pathway
Convulsive disease, mental retardation
excess Gly in the blood
deficiency of beta-alanine aminotransferase
Convulsive disease, possible coma and death
presence of beta-Ala in the blood
Proline and hydroxyproline
Prolinemia, tipe I
deficiency of Proline oxidase
excess Pro in the blood
Prolinemia, tipe II
deficiency of Pyrroline 5-carboxylate dehydrogenase
Mental retardation, convulsive disease
excess Pro in the blood
deficiency of Hydroxyproline oxidase
presence of hydroxy-Pro in the blood
deficiency of Lysine ketoglutarate reductase
Mental retardation; muscle weakness
excess Lys in the blood
deficiency of saccharopine dehydrogenase (aminoadipic semialdheyde glutamate reductase; saccharopine pathway)
Saccharopine in the blood and urine
deficiency of Lysine NAD oxidoreductase (pipecolate pathway)
Non proteic aminoacids
Deficiency of Ornithine transaminase
Athrophy of the choroid and retina
Ornithine in the blood
Genetically determined disturbances of aminoacid transport
membrane transporter for monoaminomonocarboxylic aminoacids
Neurological symptoms, vitamin B6 deficiency
Trp, Phe, Met, and other aminoacids in the urine
Cystinosis or cystinuria
Nephrolythiasis, renal insufficiency, Fanconi's syndrome
presence of cystine (disulfide bond Cys dimer) in the urine
Audio: Metabolic acidosis and defects of aminoacid metabolism
Laboratory diagnosis of hereditary defects of aminoacid metabolism
is very important because
dietary restrictions may mitigate or avoid mental retardation and other symptoms
. As usual the main problem is suspecting the disease and asking the laboratory for the appropriate test. As a general rule, an aminoacid or its metabolyte will be present in the serum and urine; and since the differential diagnosis cannot be effected on clinical grounds, the different diseases often resembling each other, it is reasonable to measure all the possible metabolytes listed in the table. A possible association that may call your attention is mental retardation and metabolic acidosis. Once the aminoacid or metabolyte has been identified, and a diagnosis is suspected, confirmation may be obtained by means of gene sequencing.
GENETIC DEFECTS OF AMINOACID METABOLISM

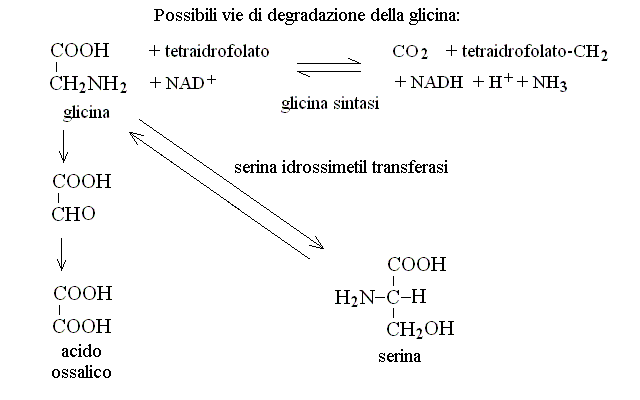

Some aminoacids have so simple metabolic pathways that genetic diseases are virtually unknown; e.g. alanine is transaminated to piruvate in a single reaction step. Other aminoacids may have complex metabolic pathways requiring several enzymes, and prone to disease.

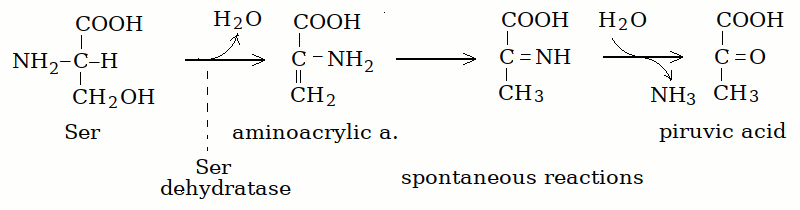

. In spite of its simple formula and its different possible catabolic pathways, diseases due to genetic defects of Gly catabolism are described. It is interesting to point out that one of Gly catabolic pathways produces oxalic acid, which is excreted by the kidney and may precipitate in the form of calcium oxalate forming urinary stones. Thus imbalances in Gly metabolism (inherited or acquired), may be associated to urolythiasis.
Ala, Ser, Glu, Gln, Asp, Asn
are deaminated by single enzymes to produce piruvate, β-ketoglutarate or oxaloacetate. These are metabolytes of the Krebs cycle or glycolysis. Since these pathways are always confirmed diseases of the metabolism of the above aminoacids essentially do not occur.

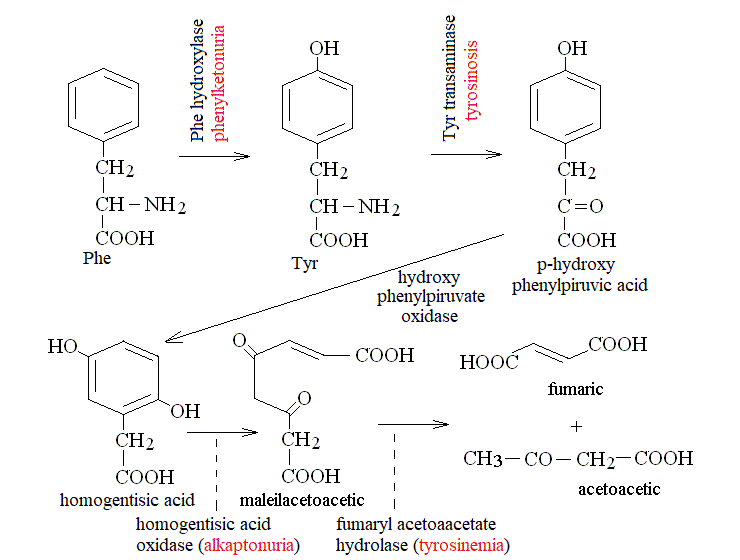

PHENYLALANINE AND TYROSINE

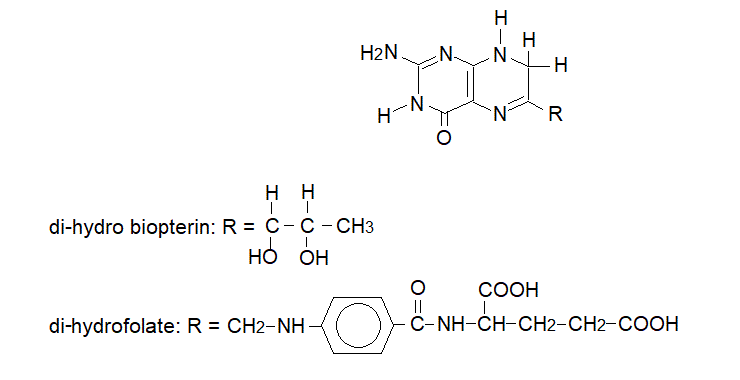

. Phenylalanine(Phe) and tyrosine (Tyr) can be interconverted in a reaction catalyzed by phenylalanine hydroxylase, thus they share common metabolic pathways, and the relative disturbances. Phe and Tyr are essential aminoacids, for which humans do not possess biosynthetic pathways. Their catabolism is specially complex because besides their degradation pathway, leading to fumarate and acetoacetate, they are the precursors of catecholamine hormones (dopamine, adrenaline and noradrenaline), and of melanins the skin pigments responsible for the color of our skin and hair.
The catabolism of Phe and Tyr leads to fumarate and acetoacetate; important intermediates are p-hydroxyphenyl piruvate and homogentisate. The metabolic pathway is depicted below (in black the enzymes catalyzing each reaction step; in red the genetic disease due to their deficiency):

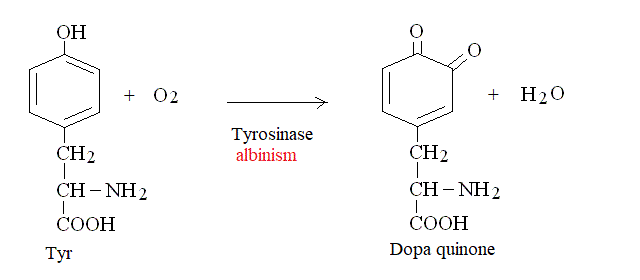

The biosynthesis of
, the pigments responsible fo the color of our skin, iris and hair starts from the oxidation of Tyr by the enzyme tyrosinase. A genetic defect of tyrosinase causes
, the lack of skin pigments.

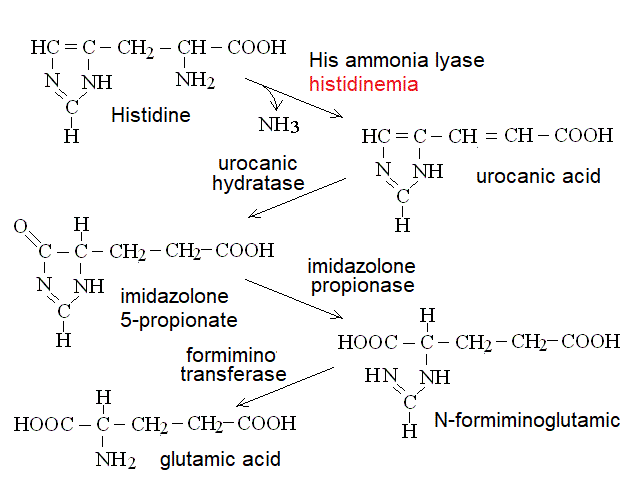

. His is converted to glutamic acid in a short metabolic pathway whose first step of this pathway is catalyzed by the enzyme His ammonia lyase and produces one molecule of ammonia. At keast two different genetic defects of this enzyme are described and cause variants of the severe inherited disease histidinemia.

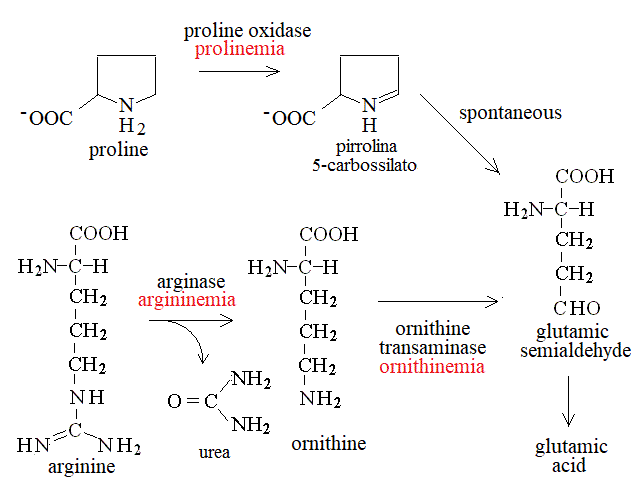

PROLINE and ARGININE
are converted to glutamic acid. One genetic disease is described for the catabolism of Pro, prolinemia, due to the defect of proline oxidase, and two diseases are described for the catabolism of Arg, argininemia and ornithinemia. Arginase, the enzyme whose defect causes argininemia belongs to the urea cycle and was described together with other genetic defects of that cycle.

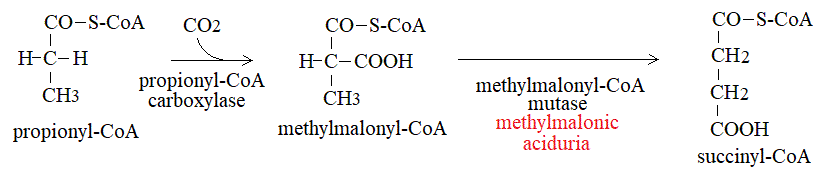

BRANCHED CHAIN AMINOACIDS and PROPIONYL-CoA

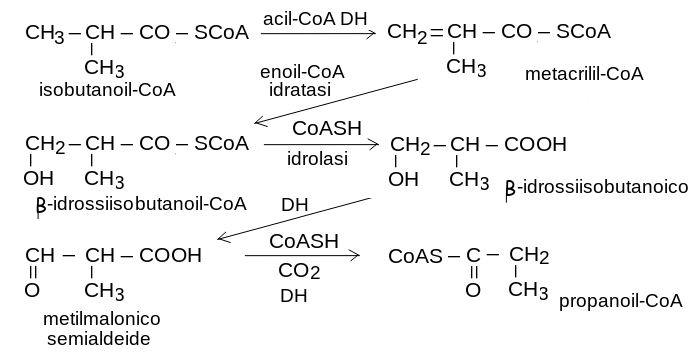

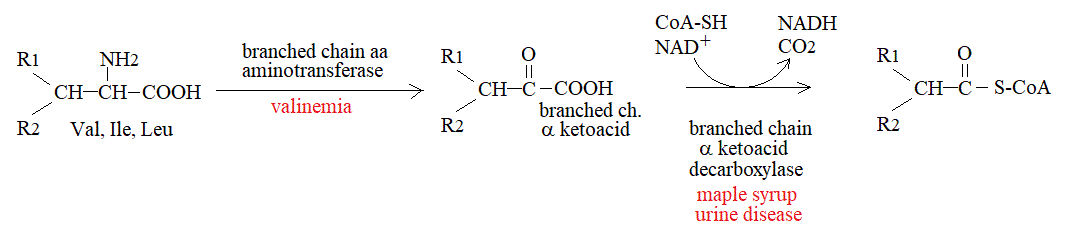

. Branched chain aminoacids (Val, Leu, Ile) have a partly common pathway whose most important inherited defect are valinemia, due to the absence of the relative transaminase, and maple syrup urine disease, due to the absence of branched chain ketoacid decarboxylase:
Moreover, the catabolism of branched chain amnoacids is among the main producers of propionyl-CoA, a metabolyte common also to the catabolism of uneven C fatty acids and other pathways. A defect of the enxyme methylmalonyl-CoA mutase or of the metabolism of vitamin B12 (required as a cofactor of methylmalonyl-CoA mutase), cause accumulation of methylmalonyl-CoA which spontaneously looses CoA-SH and is converted to methylmalonic acid. Methylmalonic acid is excreted in the urine, but its accumulation in the blood causes a metabolic acidosis (methylmalonic acidemia or aciduria). This metabolyte is easily identified in the serum or in the urine by the clinical laboratory.

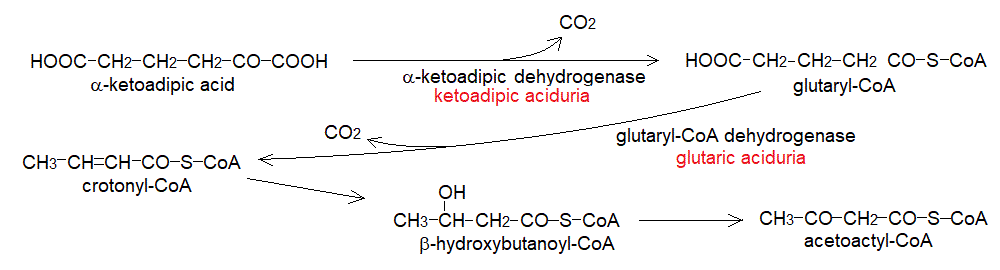

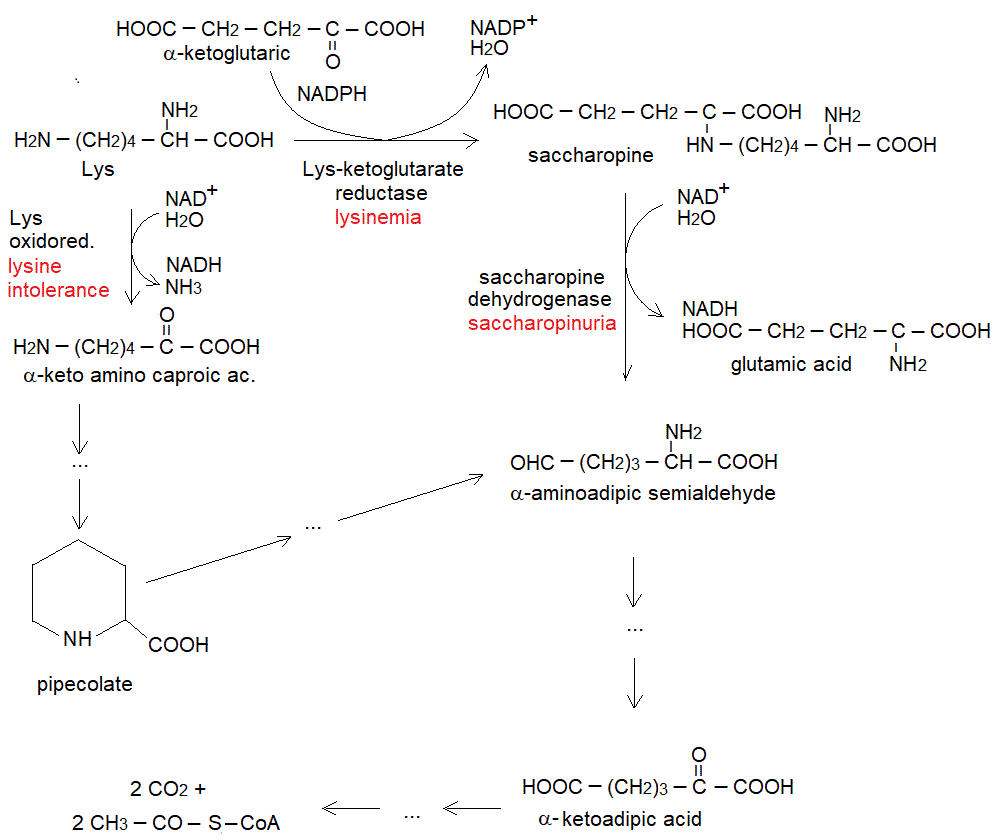

. The catabolism of the essential aminoacid lysine is extremely complex. Two main pathways are described, both of which can be affected by inheritable diseases: the
, occurring partly in the cytoplasm and partly in the mitochondria, and the
, occurring partly in the cytoplasm and partly in the peroxisomes. The two pathways converge at the common intermediate α-aminoadipic semialdehyde. Many organs carry out Lys catabolism, but the principal one is the liver, which mainly uses the saccharopine pathway. The brain is atypical in that it mainly uses the pipecolate pathway.

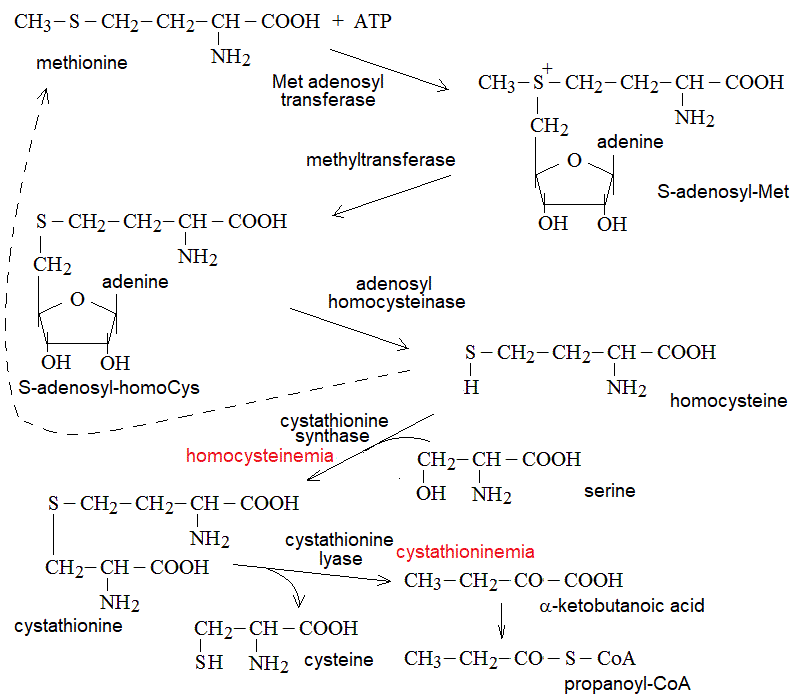

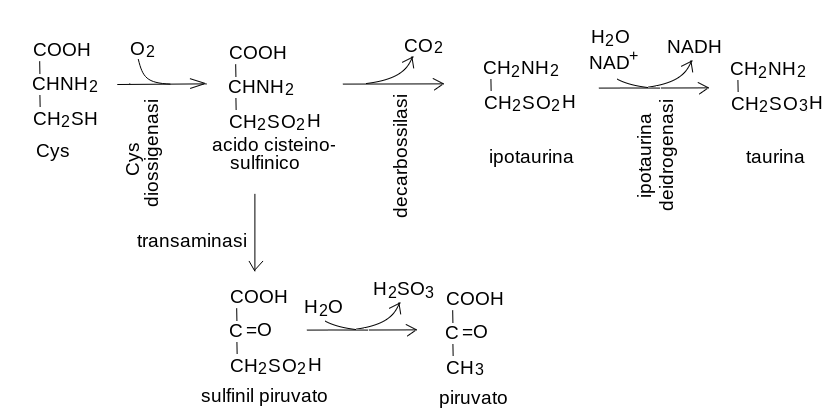

. Met is an essential aminoacid which plays two major functions: is a constituent of proteins, and a constituent of the coenzyme S-adenosyl-methionine (SAM), a methyl group donor. The catabolism of Metis complex because: (i) it requires conersion to SAM; (ii) it is partially reversible (i.e. one of its products homocysteine can be converted back to Met); (iii) it is also the biosynthetic pathway of Cys.
There are two important inherited disease of Met catabolism, which cause an increase in the plasma concentration of homocysteine and cystathionine.
is due to a defect of the enzyme cystathionine synthase. Two variants of the defect are known, one of which can be treated with administration of high doses of vitamin B6 (pyridoxine), the cofactor of cystathionine synthase. Homocysteinemia may cause mental retardation and very early atherosclerosis. The laboratory diagnosis relies upon the finding of high concentrations of homocysteine in the blood and in the urine.
is due to the defect of cystathionine lyase and causes an increase of cystathionine in the plasma and in the urine.
GENETIC DEFECTS OF AMINOACID TRANSPORT
strictly speaking is not a defect of aminoacid metabolism, but a defect of their absorption in the gut and in the renal tubuli. It is inherited as an autosomal recessive trait affecting a membrane transporter for monoaminomonocarboxylic aminoacids. Tryptophan, phenilalanine, methionine and other aminoacids appear in the urine. The defect of tryptophan absorption in the gut is specially relevant, because this aminoacid, besides being essential, is the precursor of vitamin B6 (niacine, the precursor of NADH and NADPH). As a consequence, in Hartnup disease one may observe the cutaneous and neurological symptoms of vitamin B6 deficiency (pellagra). Diagnosis is based on the identification of multiple aminoacids in the urine, together with triptophan metabolytes. The prognosis is good provided that an adequate dietary regimen is instituted.
is a defect of aminoacid transport, conceptually similar to Hartnup disease. The aminoacids that appear in the urine are lysine, arginine, ornithine and cystine (the dimer of cysteine). Cysteine, being poorly soluble precipitates yielding yellow calculi, that strongly suggest the diagnosis; confirmation comes from the demonstration of above-mentioned aminoacids in the urine. Cystinuria is inherited as an autosomal recessive trait and is relatively benign, nephrolythiasis being the most important symptom; however on the long run renal insufficiency may develop.
Audio: Hereditary defects of aminoacid transport
PRINCIPLES OF LABORATORY DIAGNOSIS
The diagnosis of inherited defects of the metabolism of aminoacids is difficult. Each singe disease is rare, but since these diseases are many, their cumulative incidence is significant, probably in the order of 2-4 per one thousand births. All these diseases manifest themselves early in extrauterine life, thus diagnosis is usually called for in the first months of life. The correct diagnosis is important because the baby is usually normal at birth, and specific dietary restriction may in some cases prevent brain damage.
Babies presenting somnolescence, stunted growth, seizures, etc. should be investigated for inherited metabolic defects. Familial anamnesis may offer some clue, but is often negative, these diseases being inherited as recessive traits. A good starting point is the

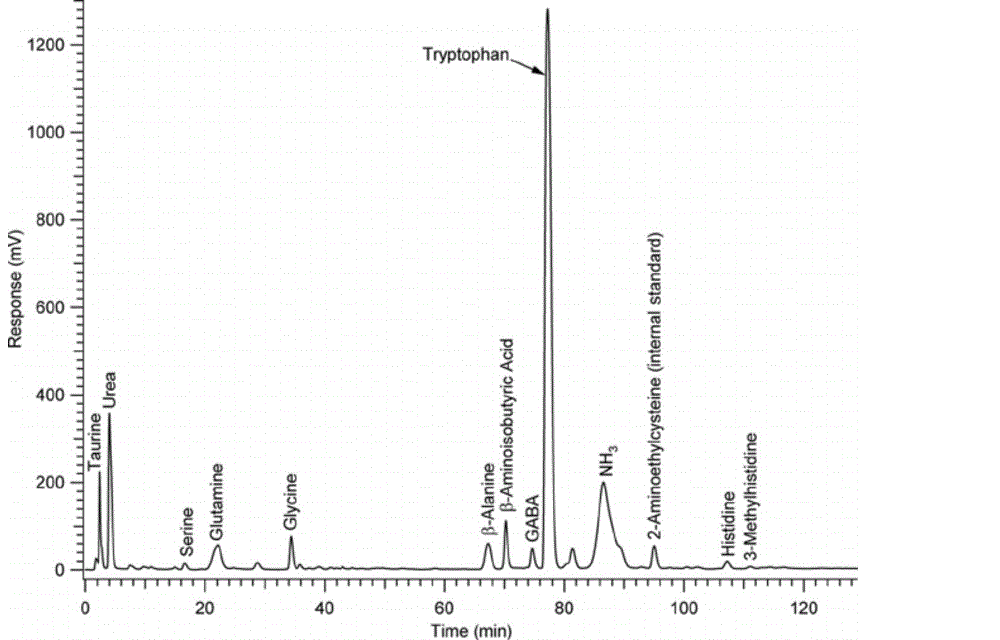

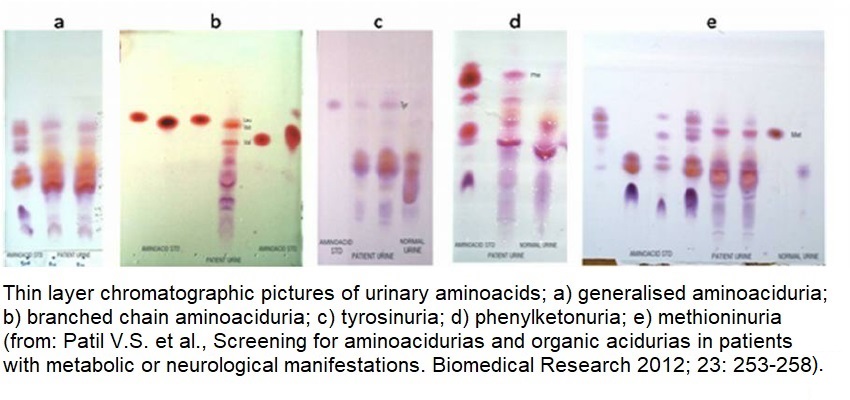

determination of the concentration of the 20 aminoacids in the serum and the urine
by means of high performance liquid chromatography and mass spectrometry. This exam may reveal the abnormal aminoacid, or may reveal the presence of an abnormal compound, not corresponding to any aminoacid, but possibly indicative of one of their metabolytes. The screening of the most common of these diseases, phenylketonuria is routinely carried out at birth by measuring the concentration of phenylpiruvic acid in the urine. A
hemogas analysis may reveal a metabolic acidosis
with increased anion gap, indicative of the presence of an acidic metabolyte in the serum.
Once the presence of an abnormal metabolyte in the urine or in the serum has been detected, it can usually be identified by chemical or enzymatic methods. The diagnostic suspicion
should be confirmed by gene sequencing
. It is advisable to submit to genetic sequencing also the baby's parents, for genetic counseling.
Inborn Errors of Metabolism in Infancy: A Guide to Diagnosis
. Pediatrics 1998; 102: (6) e69.
J Häberle, A Chakrapani, N Ah Mew, and N Longo
Hyperammonaemia in classic organic acidaemias: a review of the literature and two case histories
SC Sreenath Nagamani, A Erez, and B Lee
Argininosuccinate Lyase Deficiency
Andre' A. and Jamie J.F.
Lysine metabolism in mammalian brain: an update on the importance of recent discoveries
. Amino Acids 2013, 45: 1249-72.
Questions and exercises:
1) Hyperammoniemia suggests:
An hereditary defect in aminoacid metabolism
An hereditary defect of the urea cycle
An hereditary defect of aminoacid transport
2) Phenylketonuria is among the most common hereditary defects of metabolism; the aminoacid whose metabolism is impaired is/are:
Phenylalanine and tyrosine
3) Inherited defects of aminoacid metabolism may cause metabolic acidosis. In these cases the anion gap is
4) All genetic defects of the urea cycle are inherited as autosomal recessive traits, except for the following one, which is sex-linked:
deficiency of ornythine transcarbamoylase
arginino succinic acidemia
