MEDICINE AND SURGERY "F"
Course of LABORATORY MEDICINE
Hypervitaminoses and hypovitaminoses
VITAMINS AND OTHER ESSENTIAL NUTRIENTS: EXCESS AND DEFICIENCY
THE REGISTRATION OF ATTENDANCE TO THIS ON-LINE LECTURE IS ACTIVE!
To register your attendance please type in your surname and matricola number.
Notice that your attendance will be registered only if you completed the reading, questions, and audios, and that you cannot interrupt and resume the session (but you can repeat it as many times as you like). Remember to press the [send] button before leaving this page! A confirmation message will appear at the end of this page.
A comment section has been added at the end of this lecture. Adding a comment or question does not require registration with your matricola number, feel free to comment whenever you like.
Insufficient dietary apport of vitamins and other essential nutrients (essential aminoacids, essential fatty acids, etc.) may be at the origin of disease. The elderly are at special risk, as are some fragile patients (e.g. onchological patients under chemotherapeutic treatment). Deficiency conditions may be in some cases observed because of reduced absorption, the typical example is avitaminosis B12 in patients suffering of atrophic gastritis or having undergone gastric surgery. Hypervitaminoses are observed for lipid soluble vitamins which are physiologically stored in our organism (usually in the liver), and are usually the result of excessive dietary supplementation: thus they are iatrogenic diseases. Vitamins and essential nutrients are many and the diseases due to their insufficient apport are difficut to diagnose; however, provided that the physician asks for the appropriate analysis, the laboratory can determine the concentration of all or almost all these substances and identify the selective deficit.
vitamin and its biological function
recommended daily allowance
normal serum concentration
vision, epitelium differentiation
0.5 - 1 mg
reduced vision at dusk, skin and mucosal lesions
20 - 50 μg/dL
25 - 40 ng/mL of 25-hydroxy D
3 - 10 mg
oxidative damage of tissues; anemia
cofactor of carboxylation of Glu in coagulation enzymes
produced by intestinal microbiota
(deficiency may be simulated by
- (measure PT, PTT)
cofactor of acyl transferases
- (deficiency uncommon)
cofactor of carboxylases
neurological symptoms (Beri-Beri,
- (urinary excretion >50 μg/day)
precursor of FAD
skin and mucosal lesions, anemia
- (urinary excretion >30 μg/day)
B3 (niacin, nicotinic acid)
precursor of NAD and NADP
urinary N-methylnicotinamide and pyridone < 1.5 mg in 24 hours
B5, W (pantothenic acid)
precursor of CoA-SH
cofactor of transaminases
B8, H (biotin)
cofactor of carboxylases
- (deficit uncommon)
B9 (folic acid)
cofactor of methyl-transferases and some redox reactions
megaloblastic megalocytic anemia
cofactor of methyl-transferases
megaloblastic megalocytic anemia
(pernicious anemia, Brill's disease)
C (ascorbic acid)
necessary for the biosynthesis of OH-Pro and OH-Lys in collagen
- (>0.1 mg/dL in the leukocyte / platelet fraction)
Diagnosis of hypovitaminoses
As a general rule hypovitaminoses cause diseases with quite uncharacteristic symptoms, thus their diagnosis is difficult. Exceptions to this rule are the macrocytic megaloblastic anemias of folate and B12 deficiency, ricketts, scurvy, and the hemorragic syndrome due to antivitamins K.
Possible common symptoms of avitaminosis
: in the majority of vitamin deficiencies the target organs are: (i) the skin and mucosae, which may present degenerative lesions and ulcerations; (ii) the central and peripheral nervous systems; (iii) the blood (anemia) and vessels (hemorragic syndromes); (Iv) the gastro-intestinal tract. With the exception of the nervous system, these organs have rapid cell turnover:
- skin lesions (deficiency of vitamins B2, B3, A)
- anemias (deficiency of vitamins E, B2, B9, B12)
- neurological symptoms (deficiency of vitamins B1, B2, B3, B6, B12)
Conditions that favor hypovitaminoses
- major catastrophes (famines, civil ware, refugees, etc.)
- increased requirement (e.g. folate during pregnancy)
- prolonged antibiotic therapy, which destroys the vitamin-producing intestinal bacterial flora
- malnutrition and malabsorption (e.g. etilism and Wernicke syndrome; athropic gastritis and pernicious anemia)
- reduced endogenous prodction for those vitamins that are partly produced by our body (e.g. nicotinamide and defects of Trp metabolism of Hartnup disease; ricketts due to insfficient exposure to sunlight; antibiotic therapy and vitamin K)
- assumption of antivitamins (warfarin anticoagulants and vitamin K; antibacterial and antiparasitic drugs acting as folate antagonists like trimetoprim)
Laboratory diagnosis of avitaminoses

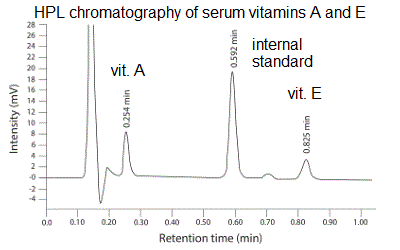

. Measuring the concentration of vitamins in the serum, blood or urine is feasible; often the effects of vitamin deficiency can also be quantitatively assessed (e.g. coagulation defects in the case of assumption of antivitamin K; anemias; etc.), but these are rarely characteristic enough to warrant a diagnosis. The risk should be consiedere that a patient may suffer of deficiency of multiple vitamins. If the patient is at risk for malnutrition and presents cutaneous, neurological or blood-related symptoms, administration of a multivitamin preparation is advisable, because the contraindications to this therapy are virtually non-existent. A very special case to consider, however, is pernicious anemia.
Hypovitaminoses are rarely observed in the absence of specific risk factors, which include: (i) social emergency conditions (civil wars, refugees, etc.); (ii) old age or assumption of chemotherapy (these conditions may reduce appetite, and cause malnutrition); (iii) chronic intestinal diseases causing malabsorption; (iv) very special dietary habits (e.g. veganism and hypovitaminosis B12; use of white rice and Beri-Beri). By contrast, the "classical hypovitaminoses", which were historically observed in whole populations or groups (e.g. scurvy, pellagra, ricketts, etc.), due to poor diets are nowadays uncommon.
Pellagra (vitamin B3 deficiency)
was formerly common in Italy, especially in the Veneto region, due to unbalanced (poor) nutrition, based on maize porridge (polenta). Maize does contain vitamin B3 (niacin, nicotinamide), but special tretaments are required to make it available for non-ruminant mammals (nixtamalization: cooking followed by tretament with alkali). The symptoms of the disease are cutaneous, intestinal and neurological (the 3 Ds: dermatitis, diarrhoea, and dementia). Pellagra is lethal if untreated. Vitaminn B3 is abundant in many fresh vegetables and in milk, and can be produced by the metabolism of tryptophan. The diagnosis is difficult because of the aspecific nature of the symptoms, especially cutaneous; notice that sun exposure exacerbates the dermatitis, evebn though non-exposed areas are affected as well. Serum levels of Trp, nicotinamide, NADH and NADPH are reduced; however, of greater diagnostic relevance is the reduced urinary escretion of metabolytes N- methylnicotinamide and pyridone: less than 1.5 mg in 24 hours suggests niacin deficiency. It is also important to exclude other possible causes of dermatitis (e.g. autoimmune).
Pernicious anemia (Brill's disease)
is a potentially lethal disease caused by the deficiency of vitamin B12. This vitamin has a very low recommended daily intake, and is present mostly in food of animal origin. Every "common" diet contains a sufficient amount of this vitamin. The chemical structure of the vitamin is complex and intestinal absorption is mediated by binding to a specific transport protein produced by the gastric mucosa and called the "intrinsic factor". The complex of vitamin B12 and the intrinsic factor is absorbed by the gut via receptor-mediated endocytosis; a reservoir of vitamin B12 is stored in the liver.
Pernicious anemia is only observed in some very special cases, including (i) patients suffering of athropic gastritis, gastric cancer, or having undergone to surgical resection of the stomach (e.g. because of cancer); these patients do not produce the intrinsic factor. (ii) Strictly vegan patients who refuse every food of animal origin, and do not make use of vitamin B12 supplementation. (iii) Newborns of mothers in the two above conditions (these babies may present congenital permanent neurological lesions).
Oral supplementation of vitamin B12 is effective in case (ii), but not in case (i), where intramuscular administration is necessary.
relies on the association of neurological symptoms and macrocytic anemia; a risk condition is always present. Confirmation is by determination of vitamin B12 concentration in the serum by radioimmunoassay, and by the Schilling test (measurement of the urinary excretion of radiolabeled vitamin B12). The intrinsic factor can be measured in gastric secretions. Achloridria is common but not diagnostic.
is relatively easy because the possible causes of macrocytic anemia are limited: besides vitamin B12 deficiency they include folate deficiency, copper deficiency and, possibly, scurvy.
may be observed in pregnancy, due to the large demand of this vitamin by the fetus. Dietary supplementation with folate tablets during pregnancy is recommended.
Diseases due to excess vitamin supply are iatrogenic and due to the patient taking excess vitamin supplementation. No normal diet can cause hypervitaminoses. Moreover, the majority of water-soluble vitamins are not stored in our body and thus any excess is disposed of by the kidney; in practice only liposolube vitamins (A, D, E, and K) are physiologically stored in the liver and can cause hypervitaminoses.
1) 85 year old patient complaining of malaise and muscular weakness. Physical examination reveals: petechiae, loss of some teeth. Blood test reveals:
9 g/dL *
3 x 10
mean corpuscular volume
75 fL (normal value 80-100 fL)*
white cell count
8 x 10
220 x 10
Analysis of the case
: the main symptoms in this case are microcytic anemia (reduced MCV), loss of teeth, and petechiae. Microcytic anemia may be due to several causes, e.g. vitamin C deficiency, thalassemia minor, or iron deficiency. Loss of teeth and petechiae in a patient having normal platelet count suggest scurvy. Inquire for nutritional habits; prescribe vitamin C tablets; measure serum iron and transferrin; sequence the genes of hemoglobin subunits.
2) 45 year old patient complaining of chronic arthritis, treated with antiinflammatory drugs and methotrexate. Physical examination reveals obesity, chronic arthritis. Blood test reveals:
12 g/dL *
3.8 x 10
mean corpuscular volume
105 fL (normal value 80-100 fL)*
white cell count
8.3 x 10
180 x 10
Analysis of the case
: in addition to arthritis the patient has macrocytic anemia. Macrocytic anemia may be due to deficiency of vitamin B12 or folic acid, or to hypothyroidism. Folate deficiency may be due to methotrexate, which is an antifolic agent. There is no obvious indication that absorption of vitamin B12 may be reduced. Measure folic acid in the serum. Carry out a complete thyroid investigation (measure T3, T4, TSH, and basal metabolism).
Questions and exercises:
1) Macrocytic and macroblastic anemia is observed in:
deficiency of folate or vitamin B6
deficiency of folate or vitamin B12
deficiency of vitamin B6 or B12
2) The normal blood concentration of vitamin A is:
25 - 40 ng/dL
20 - 50 μg/dL
3) Some vitamins can be produced in our body:
B6 from Trp; D from ergosterol; K by the intestinal microfauna
B12 from the heme; A from unsaturated fatty acids
C from glucuronic acid; panthetein from Cys
4) Wernicke neurological syndrome is due to a deficiency of:
your score: 10
Attendance not registered because of insufficient score - Retry!
You can type in a comment or question below (max. length=160 chars.); please specifiy that the subject of your comment or question is aminoacid metabolism:
All comments posted on the different subjects have been edited and moved to
this web page (for optimal reading try to have at least 80 characters per line)!
Thank you Professor (lecture on bilirubin and jaundice).
The fourth recorded part, the one on hyper and hypoglycemias is not working.
Bellelli: I checked and in my computer it seems to work. Can you better specify
the problem you observe?
This Presentation (electrolytes and blood pH) feels longer than previous lectures
Bellelli: it is indeed. Some subjects require more information than others. I was
thinking of splitting it in two nest year.
Bellelli in response to a question raised by email: when we compare the blood pH
with the standard pH we do not mean to compare the "normal" blood pH (7.4)
with the standard pH. Rather we compare the actual blood pH of the patient, with
the pH of the same blood sample equilibrated under standard conditions.
Thus, if we say that standard pH is lower than pH we mean that equilibriation with
40 mmHg CO2 has caused absorption of CO2 and has lowered the pH with respect
to its value before equilibration.
(Lipoproteins) Is the production of leptin an indirect cause of type 2 diabetes since
it works as a stimulus to have more adipose tissue that produces hormones?
Bellelli: in a sense yes, sustained increase of leptin causes the hypothalamus to adapt
and to stop responding. Obesity ensues and this in turn may cause an increase in the
production of resistin and other insulin-suppressing protein hormones produced by the
adipose tissue. However, this is quite an indirect link, and most probably other factors
contribute as well.

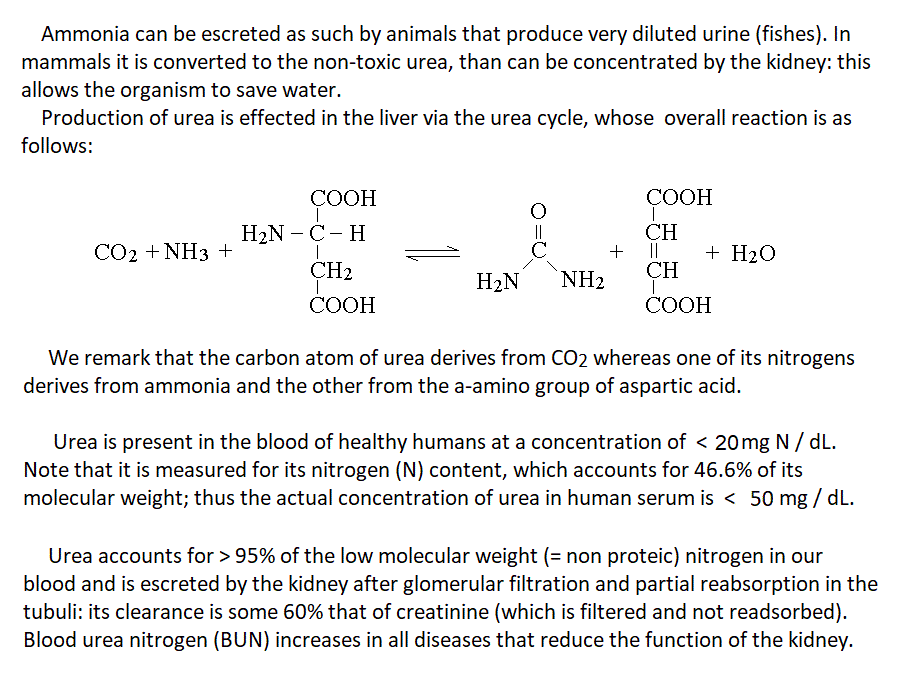

(Urea cycle) what is the meaning of "dissimilatory pathway"?
