MEDICINE AND SURGERY "F"
Course of LABORATORY MEDICINE
Prenatal and neonatal clinical analyses

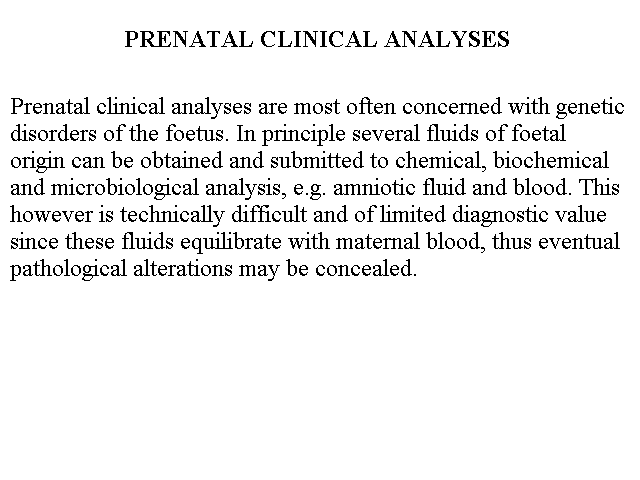

PRENATAL CLINICAL ANALYSES
THE REGISTRATION OF ATTENDANCE TO THIS ON-LINE LECTURE IS
To register your attendance please type in your surname and matricola number.
Notice that your attendance will be registered only if you completed the reading, questions, and audios, and that you cannot interrupt and resume the session (but you can repeat it as many times as you like). Remember to press the [send] button before leaving this page! A confirmation message will appear at the end of this page.
A comment section has been added at the end of this lecture. Adding a comment or question does not require registration with your matricola number, feel free to comment whenever you like.
Prenatal clinical analyses are most often concerned with genetic disorders of the foetus. In principle several fluids of foetal origin can be obtained and submitted to chemical, biochemical and microbiological analysis, e.g. amniotic fluid and blood. This however is technically difficult and of limited diagnostic value since these fluids equilibrate with maternal blood, thus eventual pathological alterations may be concealed.

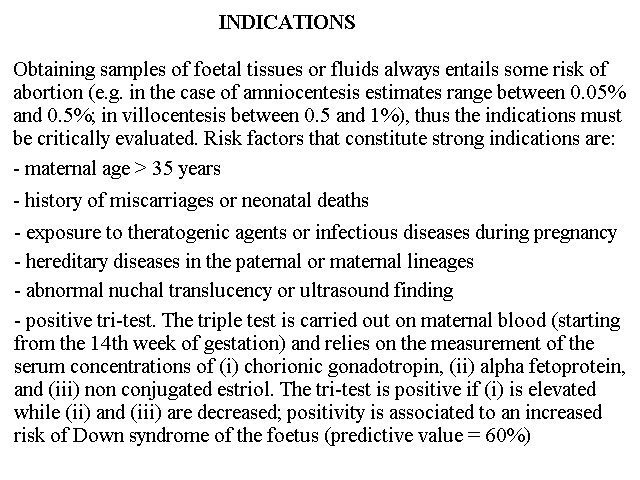

Obtaining samples of foetal tissues or fluids always entails some risk of abortion (e.g. in the case of amniocentesis estimates range between 0.05% and 0.5%; in villocentesis between 0.5 and 1%), thus the indications must be critically evaluated. Risk factors that constitute strong indications are:
- maternal age > 35 years
- history of miscarriages or neonatal deaths
- exposure to theratogenic agents or infectious diseases during pregnancy
- hereditary diseases in the paternal or maternal lineages
- abnormal nuchal translucency or ultrasound finding
- positive tri-test. The triple test is carried out on maternal blood (starting from the 14th week of gestation) and relies on the measurement of the serum concentrations of (i) chorionic gonadotropin, (ii) alpha fetoprotein, and (iii) non conjugated estriol. The tri-test is positive if (i) is elevated while (ii) and (iii) are decreased; positivity is associated to an increased risk of Down syndrome of the foetus (predictive value = 60%)

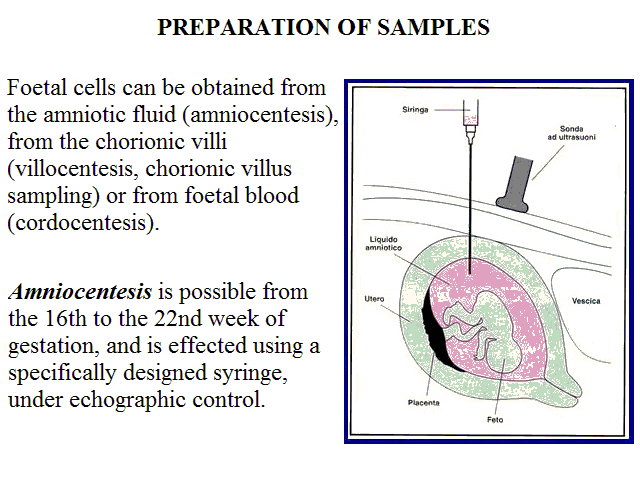

PREPARATION OF SAMPLES

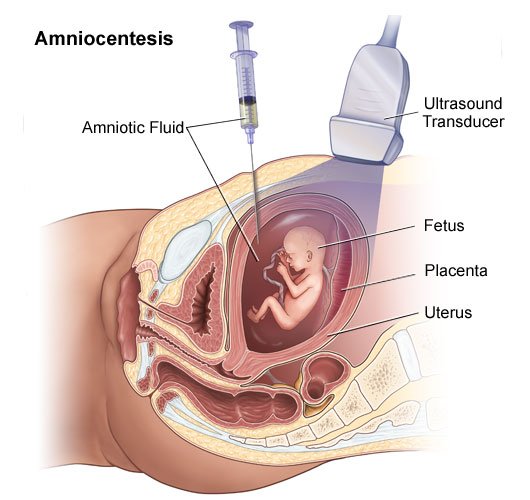

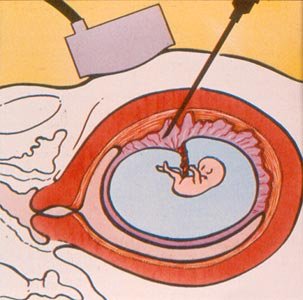

Foetal cells can be obtained from the amniotic fluid (amniocentesis), from the chorionic villi (villocentesis, chorionic villus sampling) or from foetal blood (cordocentesis).
is possible from the 16th to the 22nd week of gestation, and is effected using a specifically designed syringe, under echographic control.

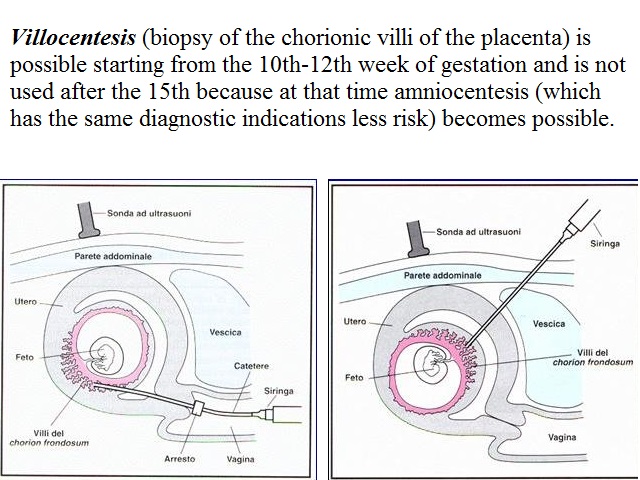

(biopsy of the chorionic villi of the placenta) is possible starting from the 10th-12th week of gestation and is not used after the 15th because at that time amniocentesis (which has the same diagnostic indications less risk) becomes possible.

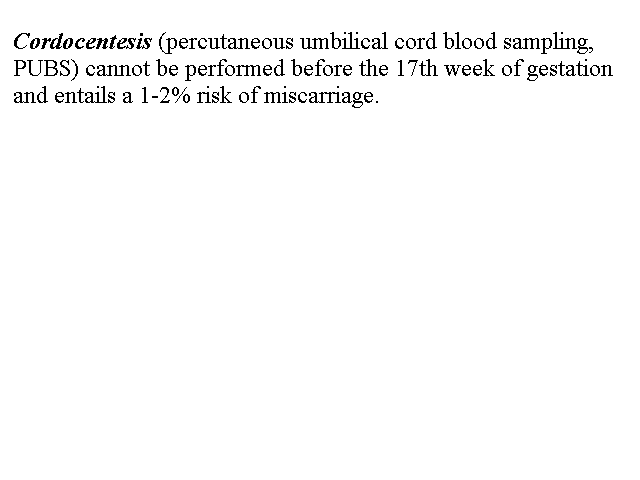

(percutaneous umbilical cord blood sampling, PUBS) cannot be performed before the 17th week of gestation and entails a 1-2% risk of miscarriage.

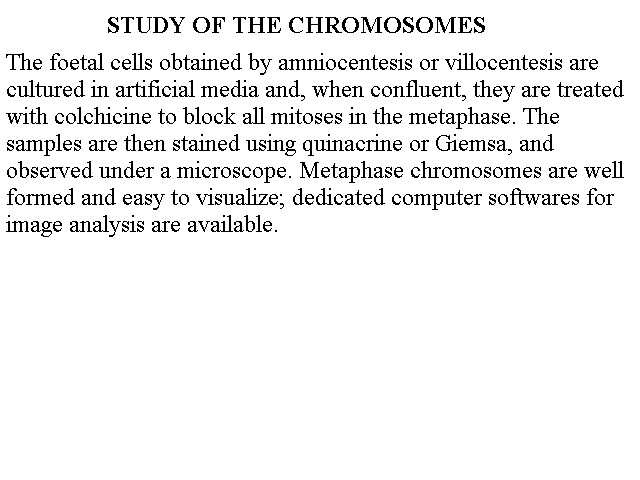

STUDY OF THE CHROMOSOMES
The foetal cells obtained by amniocentesis or villocentesis are cultured in artificial media and, when confluent, they are treated with colchicine to block all mitoses in the metaphase. The samples are then stained using quinacrine or Giemsa, and observed under a microscope. Metaphase chromosomes are well formed and easy to visualize; dedicated computer softwares for image analysis are available.

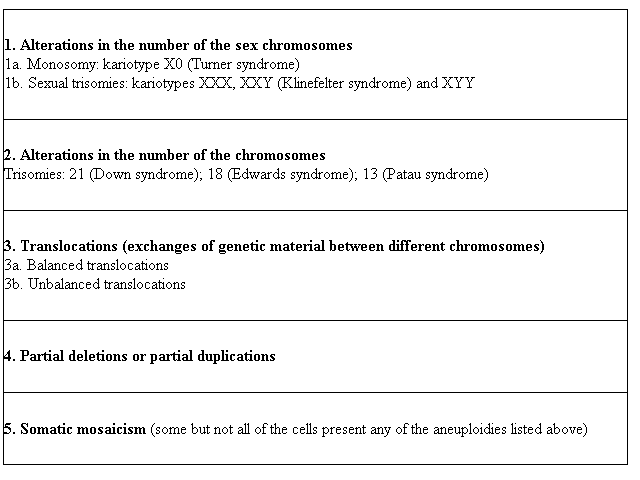

Pathological conditions that may be diagnosed with this method include aneuploidies (alterations in the number of the chromosomes and/or structural anomalies):
1. Alterations in the number of the sex chromosomes
1a. Monosomy: kariotype X0 (Turner syndrome)
1b. Sexual trisomies: kariotypes XXX, XXY (Klinefelter syndrome) and XYY
2. Alterations in the number of the chromosomes
Trisomies: 21 (Down syndrome); 18 (Edwards syndrome); 13 (Patau syndrome)
3. Translocations (exchanges of genetic material between different chromosomes)
3a. Balanced translocations
3b. Unbalanced translocations
4. Partial deletions or partial duplications
5. Somatic mosaicism
(some but not all of the cells present any of the aneuploidies listed above)

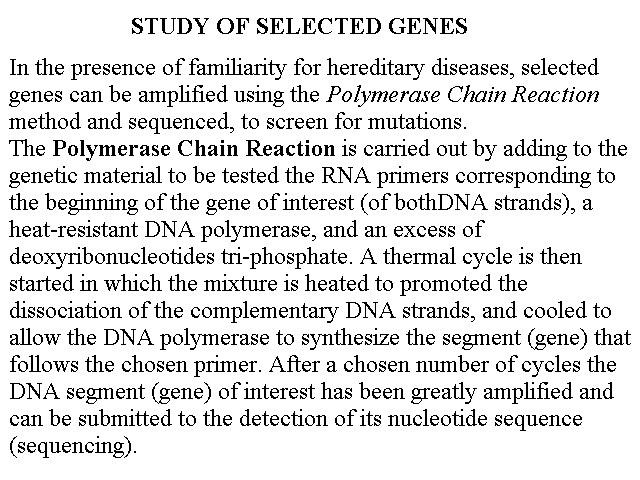

STUDY OF SELECTED GENES
In the presence of familiarity for hereditary diseases, selected genes can be amplified using the
Polymerase Chain Reaction
method and sequenced, to screen for mutations.

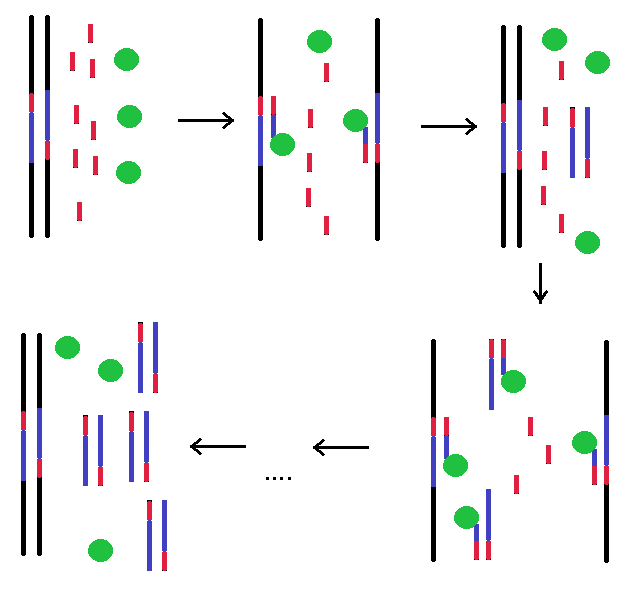

Polymerase Chain Reaction
is carried out by adding to the genetic material to be tested the RNA primers corresponding to the beginning of the gene of interest (of bothDNA strands), a heat-resistant DNA polymerase, and an excess of deoxyribonucleotides tri-phosphate. A thermal cycle is then started in which the mixture is heated to promoted the dissociation of the complementary DNA strands, and cooled to allow the DNA polymerase to synthesize the segment (gene) that follows the chosen primer. After a chosen number of cycles the DNA segment (gene) of interest has been greatly amplified and can be submitted to the detection of its nucleotide sequence (sequencing).
Examples of hereditary genetic diseases that can be diagnosed by selective amplification and sequencing include:
Frequency at birth
Polycistic kidney disease
Sickle cell anemia
Hemoglobin beta subunits
Hemoglobin beta chain
Chloride membrane transporter CFTR
Coagulation factor VIII
All the mitochondria of the foetus (or of the adult) cells come from the ovum, i.e. they are of maternal origin. Several genetic diseases due to mitochondrial defects are known and are maternally inherited. They can be diagnosed by studying the mitocondrion DNA extracted from any cell (including those obatined by amniocentesis, or villocentesis). The most common mitochondrial diseases are myopathies and neuropathies.
OTHER DISEASES THAT CAN BE DIAGNOSED IN THE FOETUS
Foetal infections may be diagnosed from the presence of bacteria in the (normally sterile) amniotic fluid. They are severe, life-threatening conditions and should be promptly treated with antibiotics administered to the mother or directly in the amnios.
Lung maturity can be estimated by the lecithin/sphingomyelin ratio (normal value >2:1) and the surfactant/albumin ratio (normal value >55) in the amniotic fluid.
Rh incompatibility and risk of foetal erythroblastosis.
PERINATAL CLINICAL ANALYSES
Several clinical analysis are routinely carried out on neonatal blood and urine. Technically these are not different from the equivalent analyses one could carry out on the adult; but some diseases must be diagnosed immediately after birth because they require prompt therapy. Examples of these include:
Phenylketonuria and other metabolic defects
The reason why diagnosis is so urgent is that the foetus suffering of any of these conditions is normal at birth, because the metabolism of the mother (if she is healthy) compensates for the defect. After birth the disease becomes evident and usually begins to produce organ damage (most often in the brain).
Questions and exercises:
1) At which gestational age the amniocentesis is indicated:
11th - 15th week
16th - 22nd week
after the 18th week
2) The diseases that can be diagnosed from the fetal cells obtained by the procedures described in question 1 are:
Monogenic hereditary diseases, chromosomal abnormalities, mitochondrial diseases
Monogenic hereditary diseases, chromosomal abnormalities, skeletal deformities
Mitochondrial diseases, chromosomal abnormalities, hydrocephalus
3) The prenatal diagnosis of inherited enzymatic defects is achieved by
PCR followed by gene sequencing
Detection of abnormal concentrations of the substrate of the affected enzyme
4) To select the gene to be amplified by PCR one needs:
the appropriate DNA primers
the appropriate gene promoter
the appropriate RNA primers
