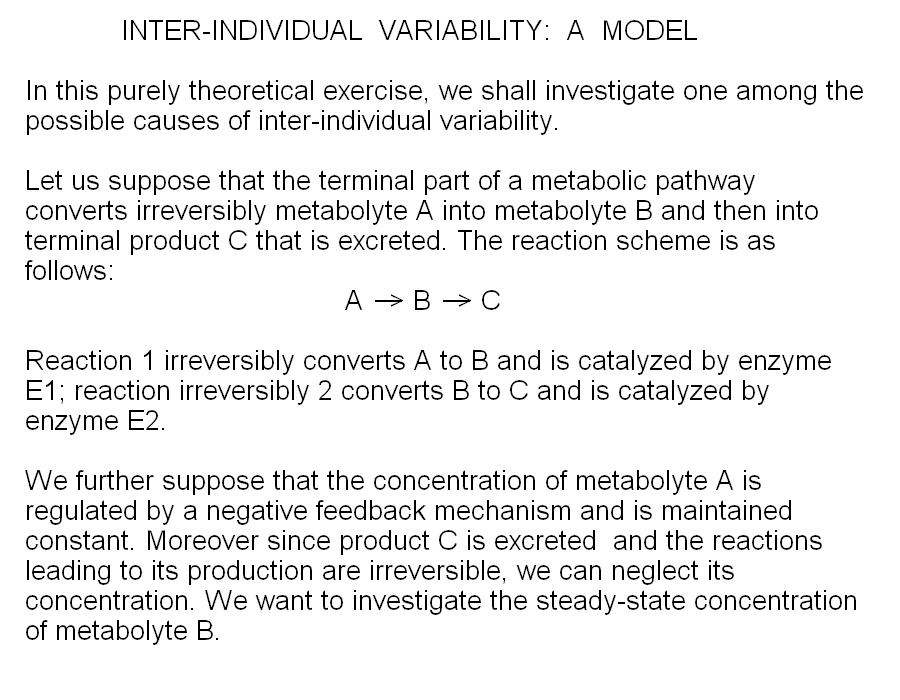

     In this purely theoretical exercise, we shall investigate one among the possible causes of inter-individual variability.

The reaction scheme
      Let us suppose that the terminal part of a metabolic pathway converts irreversibly metabolyte A into metabolyte B and then into terminal product C that is excreted. The reaction scheme is as follows:
A → B → C

      Reaction 1 irreversibly converts A to B and is catalyzed by enzyme E1; reaction irreversibly 2 converts B to C and is catalyzed by enzyme E2.
      We further suppose that the concentration of metabolyte A is regulated by a negative feedback mechanism and is maintained constant. Moreover since product C is excreted and the reactions leading to its production are irreversible, we can neglect its concentration. We want to investigate the steady-state concentration of metabolyte B.

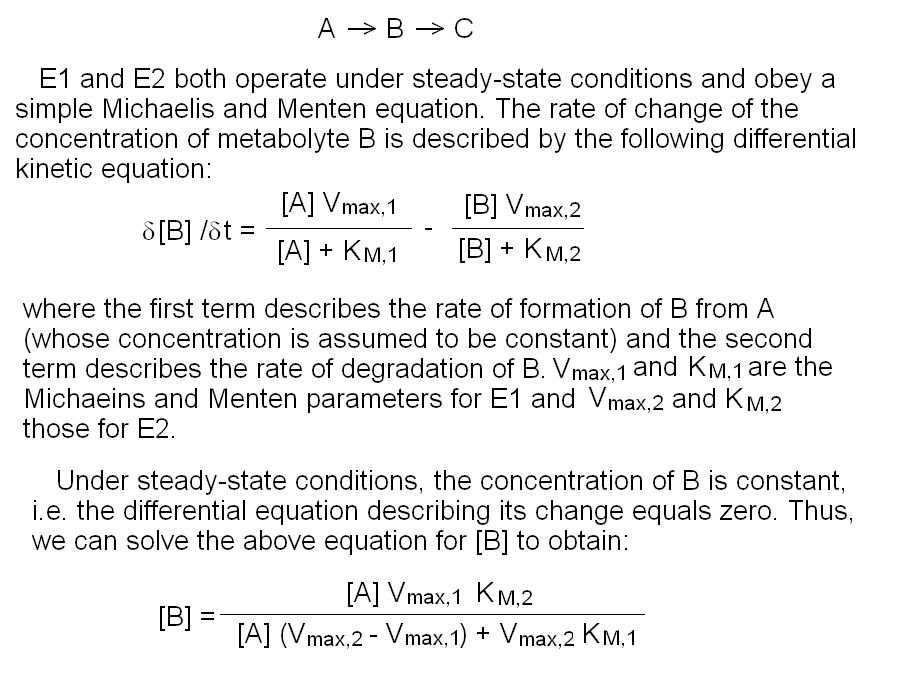

      Let us assume that both E1 and E2 operate under steady-state conditions and obey a simple Michaelis and Menten equation. The rate of change of the concentration of metabolyte B is described by the following differential kinetic equation:
          (eqn. 1)
where the first term describes the rate of formation of B from A (whose concentration is assumed to be constant) and the second term describes the rate of degradation of B. Vmax,1 and KM,1 are the Michaelis and Menten parameters for E1 and Vmax,2 and KM,2 those for E2.

      Under steady-state conditions, the concentration of B is constant, i.e. the differential equation describing its change equals zero. Thus, we can solve the above equation for [B] to obtain:
          (eqn. 2)

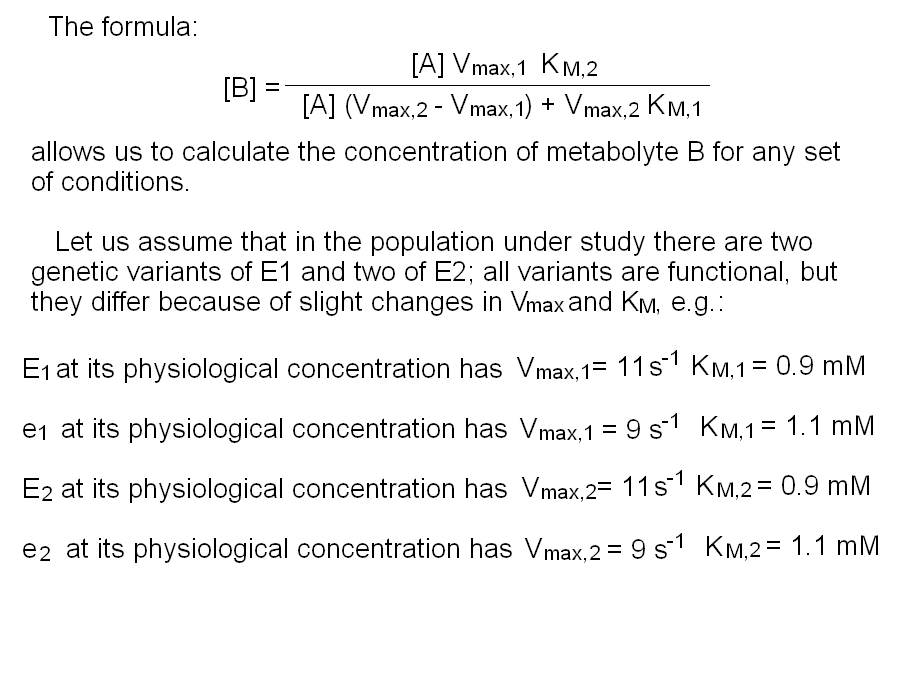

      The above formula allows us to calculate the concentration of metabolyte B for any set of conditions. For example, if we assume the following set of parameters:
steady-state concentration of A       KM,1       Vmax,1       KM,2       Vmax,2
1 mM 1 mM 10 s-1 1 mM 10 s-1
we can easily calculate from eqn. 2 that the steady-state concentration of B is 1 mM.

Presence of allelic variants of the enzyme(s) and their distribution in the population
      Let us assume that in the population under study there are two genetic variants of E1 and two of E2, that we call E1, e1, E2 and e2 respectively. All variants are functional, but they differ because of slight changes in Vmax and KM, e.g.:

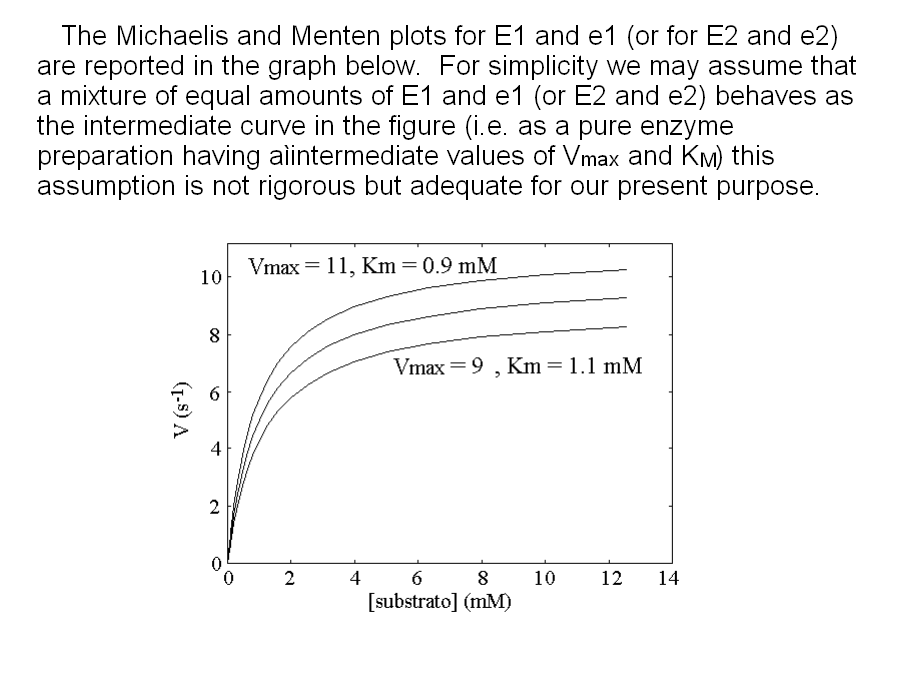

E1: Vmax,1=11 s-1; KM,1=0.9 mM                   e1: Vmax,1=9 s-1; KM,1=1.1 mM
E2: Vmax,2=11 s-1; KM,2=0.9 mM                   e2: Vmax,2=9 s-1; KM,2=1.1 mM

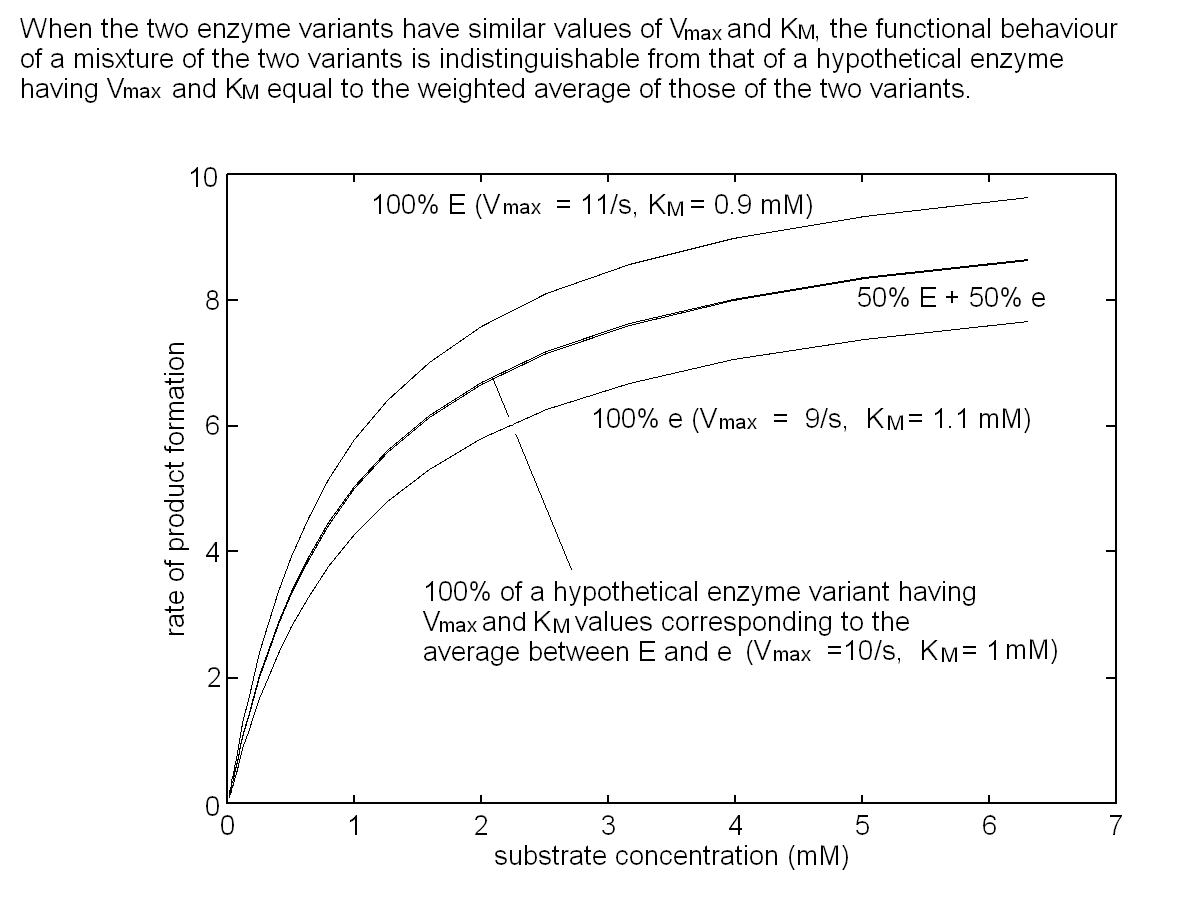

      Let us further assume that the concentration of each enzyme is constant and that function of enzyme 1 in the heterozygous individual having an equimolar mixture of E1 and e1 can be approximated by a Michaelis and Menten equation with averaged parameters (i.e. Vmax,1=10 s-1; KM,1=1 mM). The same applies to the function of enzyme 2. These approximations are very rough, but sufficient for our present purpose:

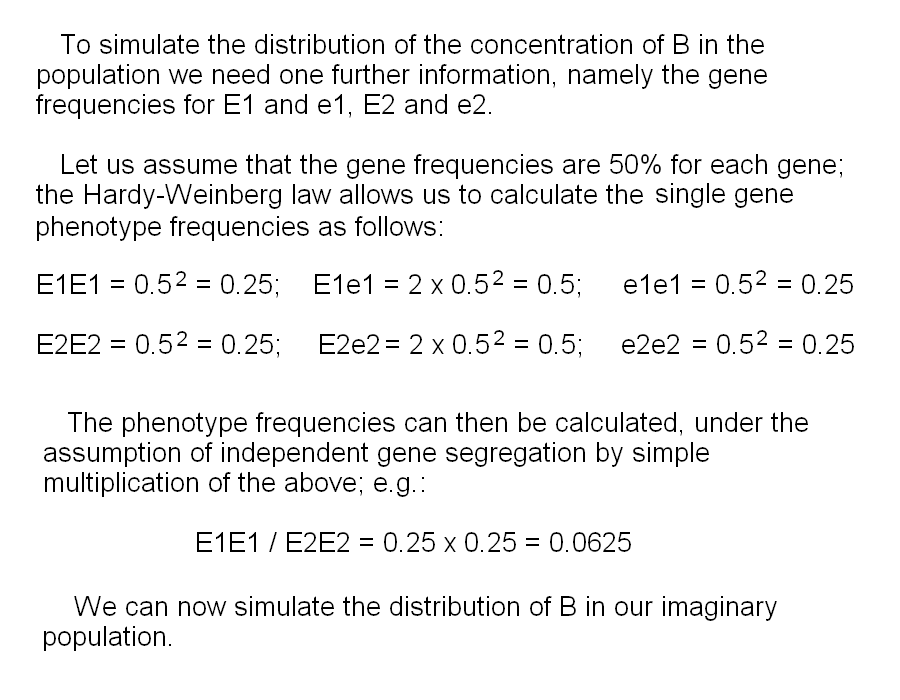

      To simulate the distribution of the concentration of B in the population we need one further information, namely the gene frequencies for E1 and e1, E2 and e2. Let us assume that the gene frequencies are 50% for each gene; the Hardy-Weinberg law allows us to calculate the phenotype frequencies as follows:
E1E1: 0.52=0.25       E1e1: 0.5 x 0.5 x 2 = 0.5       e1e1: 0.52=0.25
E2E2: 0.52=0.25       E2e2: 0.5 x 0.5 x 2 = 0.5       e2e2: 0.52=0.25

      The frequencies of the different two-gene phenotypes are then calculated by multiplying those of the pertinent single-gene phenotypes; e.g.:
E1e1 / E2e2 = 0.5 x 0.5 = 0.25

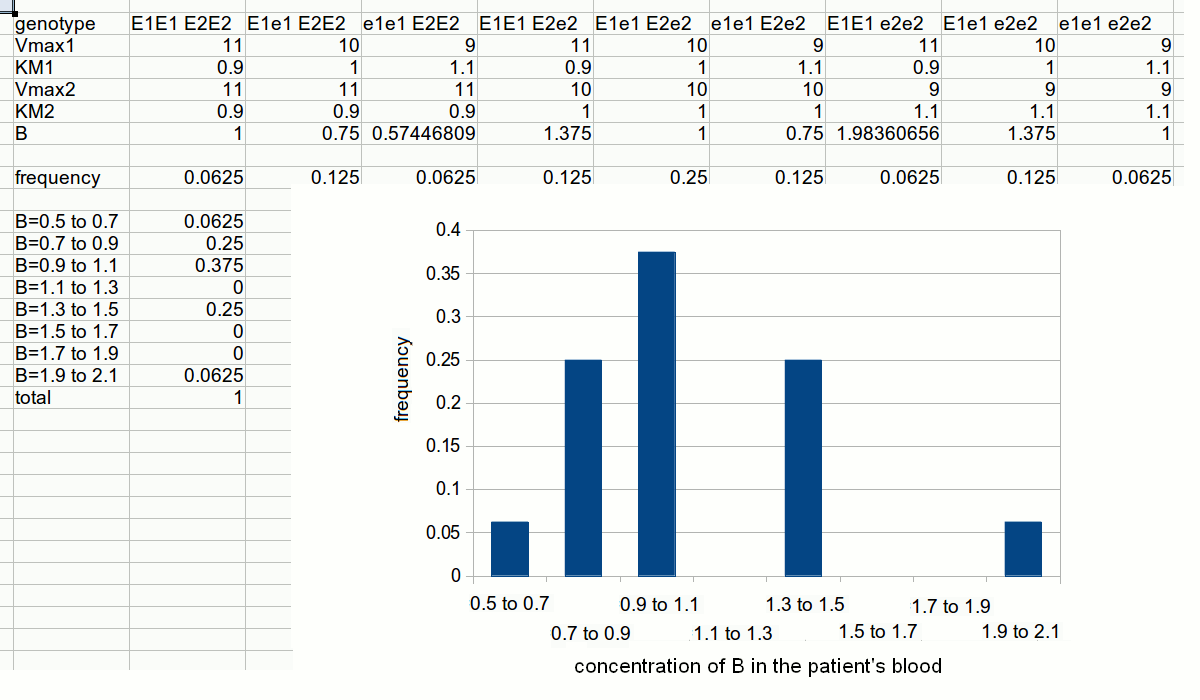

      The distribution of metabolyte B concentration in the population can be calculated as follows:

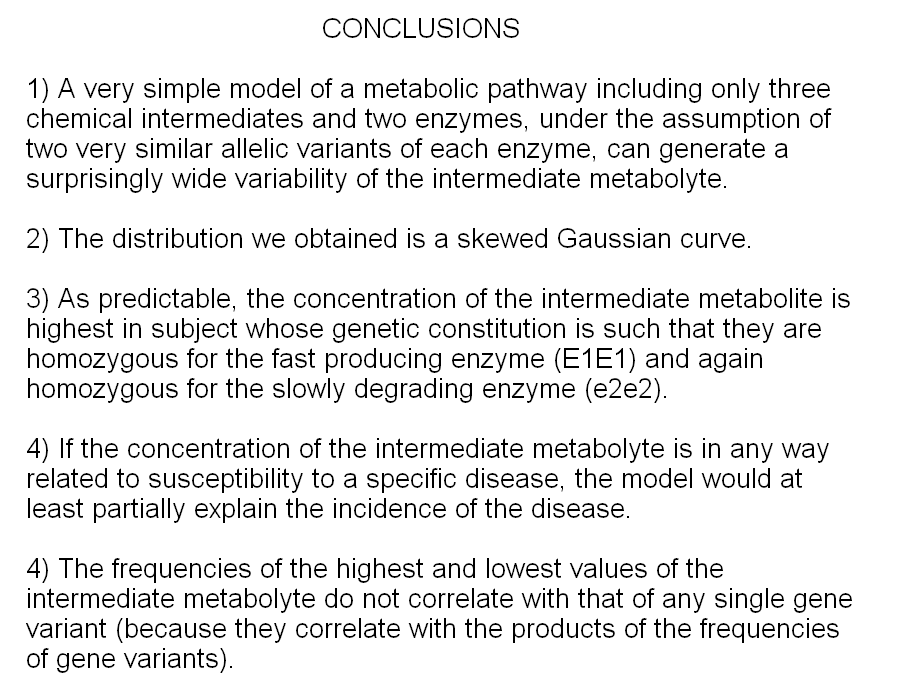

1) A very simple model of a metabolic pathway including only three chemical intermediates and two enzymes, under the assumption of two very similar allelic variants of each enzyme, can generate a surprisingly wide variability of the intermediate metabolyte.
2) The distribution of the intermediate metabolyte concentration is described by a skewed Gaussian curve.
3) As predictable, the concentration of the intermediate metabolyte is highest in subjects whose genetic constitution is such that they are homozygous for the more effective variant of the producing enzyme (E1E1), and again homozygous for the less effective variant of the degrading enzyme (e2e2).
4) If the concentration of the intermediate metabolyte is in any way related to susceptibility to a specific disease the model would partially explain the incidence of the disease.
5) The frequencies of the highest and lowest values of the intermediate metabolyte concentrations do not correlate with the frequency of any single gene variant (because they correlate with the products of the gene frequencies).

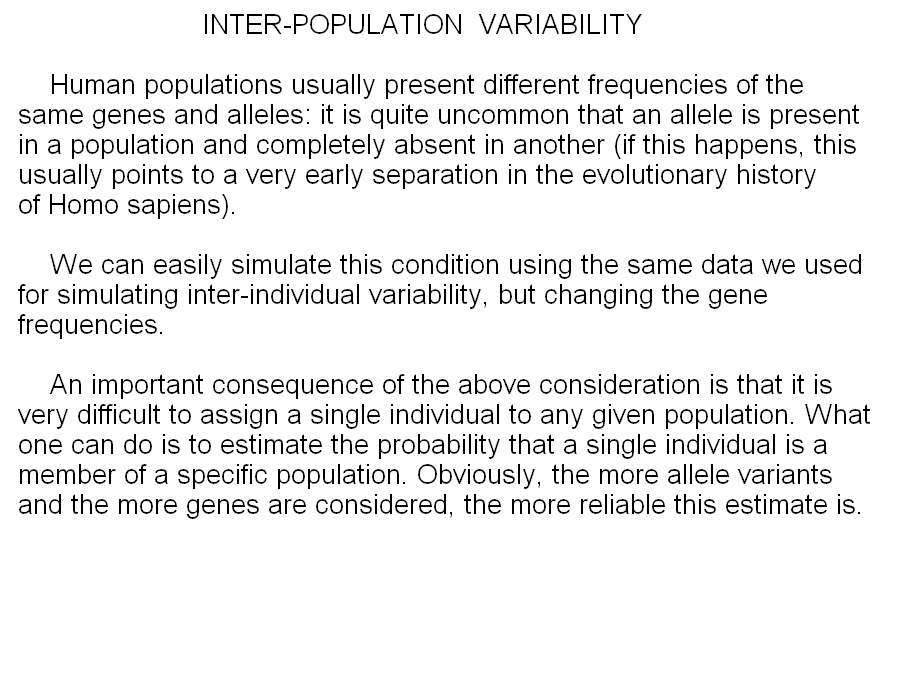

Inter-population variability
      Human populations usually present different frequencies of the same alleles of the same genes. It is quite uncommon that an allele is present in a population and completely absent in another (if this happens, this points to a very ancient separation in the evolutionary history of Homo sapiens).

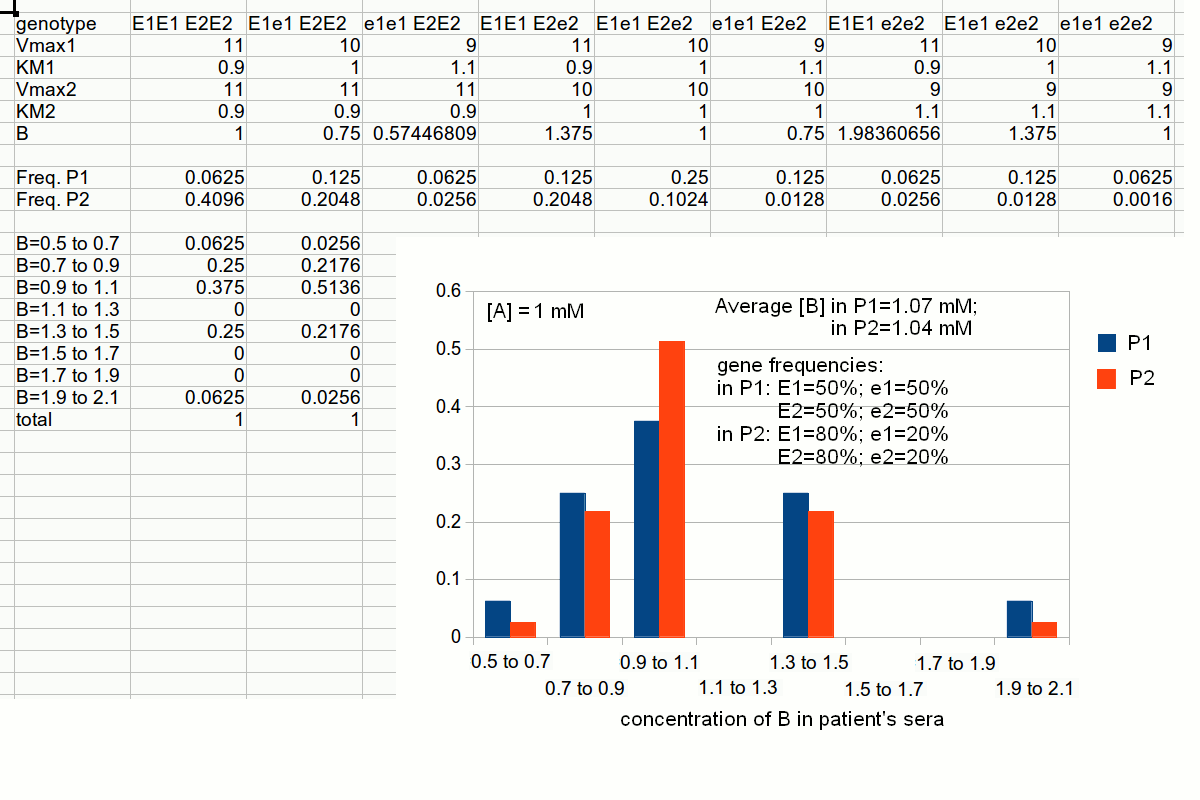

      We can easily simulate this condition using the same data we used for simulating inter-individual variability, but changing the gene frequencies. An important consequence of the above consideration is that it is very difficult to assign a single individual to any given population. What one can do is to estimate the probability that a single individual is a member of a given population. Obviously, the more allele variants and the more genes are considered, the more reliable this estimate is.

Variability within group and between groups
      An important statistical concept to be applied when a population is composed by two or more different groups is that of variability within and between. The total variability recorded in the entire population is estimated as the total deviance, DT:
DT = Σ (xi - xm)2
where x is the value of the parameter considered, and xm its average. If we divide DT by (N-1), where N represents the number of the members of the total population we obtain the total variance, σ2T of the population: σ2T = DT / (N-1).
      If the population is composed by two groups, each with its own deviance, we have:
D1 = Σ (x1,i - x1,m)2
D2 = Σ (x2,i - x2,m)2
where x1,i represents the individual values of parameter x in group 1 and x1,m the average value of parameter x in group 1; the same applies to x2,i and x2,m for group 2.
      The deviance within, DW is the sum of the deviance of each group with respect to its average value: DW = D1 + D2.
      The deviance between, DB is the deviance of the average of each group with respect to the average of parameter x in the total population times the number of elements in each group (in our example we only have two groups): DB = Σ Nj (xj,m - xm)2. Obviously the sum of the number of elements of each group equals the total population: N = Σ (Nj).
      The sum of the deviance within and the deviance between equals the total deviance of the population: DT = DB + DW.

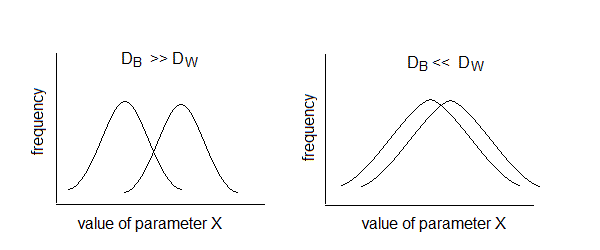

      The above relationship is important: in some cases the DB may be large with respect to DW. For example if we compare the glycemias of a group of diabetic patients with that of a control group of healthy subjects we observe that DB >> DW, implying that there is a larger difference in the average values of glycemia in the two groups than there is in the glycemias of diabetic patients or healthy subjects. The opposite is usually found in human groups of healthy subjects, where DB << DW. For example, in cognitive tests measuring linguistic ability women usually score slightly better than men, but the deviance among women and the deviance among men are much larger than those between the averages of women and men. These two possible conditions are schematicaly represented below:

Populations are not races
      The concept of race applied to human populations has a releatively short (and infamous) history: it was initially used by De Gobineau in France and Knox in England (both circa 1850). A race is an artificial group, obtained in zootechnology or agriculture by rigorous control over reproduction. As a consequence it cannot be applied to human populations and we can state that human races do not exist. The difference between a race and a population or ethnic group is evident to genetists but quite subtle for non-specialists. We may explain this difference by comparing two examples, one for two populations, the other for two races.
      The distribution of blood groups in Italy is fairly homogeneous, except for Sardinia, which is different, as shown in the table below:
blood groups:0ABAB
Italy except Sardinia46%42%9%3%

      Clearly, the Sardinian population stands apart from the rest of Italy, but you cannot find this property in any single individual. A population differs from another because of the allelic frequencies of the same genes. Allele frequencies are properties of groups, not of individuals. Obviously, two populations differ because of the allele frequencies of a large number of genes, not only one.
      By contrast let's consider the case of two races, e.g. basset-hounds and terrier. All and every basset-hounds have a mutation of the gene FGFR3, and carry the same genetic defect of human achondroplasia, which causes a reduced growth of long bones. By contrast no terrier has this mutation. Thus race is a genetic property of the population and of each of its members. Clearly, a race can be maintained only if mating is strictly controlled, either by humans or by physical barriers. Again, two races of the same species differ because of allele variants of many genes, not only one.
      As a consequence of the above distinction, we can confidently state that an individual animal is a member of a specific race (and eventually how "pure" it is), whereas in the case of individual humans we can determine which alleles he/she posesses for relevant genes and infer the probability that he/she is a member of a population. Moreover, in order to define the human populations we also need non-genetic criteria (e.g. language or geographical considerations).
      Races, but not populations, have an impoverished gene pool. Applying strict control over mating one can further reduce the gene pool of a group of animals and obtain the strain. This is only done for laboratory animals; all individuals belonging to the same strain are genetically identical or almost so and they accept transplants from individuals of the same strain without rejection (which is not the case with animal of the same race).
      The genetic of populations is extremely important in medicine because different alleles may be differently related to susceptibility to diseases; thus disease prevalences may vary among different populations, because of their characteristic allele frequencies. This in turn affects the reliability of our diagnostic hypotheses, because the prevalence appears as the pre-test probability in Bayes' formula.

Questions and exercises:
1) Inter-human variability is a consequence of:
the distribution of allelic variants of the same genes
the presence of non-functional genes in the population
environmental factors

2) Inter-population variability is a consequence of:
different frequencies of (the same) allelic variants of genes
environmental factors
the presence of different genes in the different populations

3) The Hardy Weinberg law
describes the genotype frequencies
correlates the phenotype frequencies to the gene frequencies
describes allelic frequencies

4) The variability of analytes' concentrations among different individuals
is determined by stochastic phenomena
is genetically determined because of allelic variants of the analytes
